Most Dhaka apartments come with a kitchen shaped by the builder’s floor plan, not your cooking habits. You end up with a space that technically functions but never quite feels right. Choosing the correct layout from the start, or redesigning with the right one, changes everything. According to Remodeling Magazine’s 2024 Cost vs. Value Report, minor kitchen remodels deliver an average ROI of 96%, making this one of the smartest investments a homeowner can make. In this guide, we compare L-shaped and U-shaped modular kitchen layouts across space requirements, storage capacity, workflow, and cost, so you can choose with confidence.
In our modular kitchen projects across Dhaka, L-shaped layouts account for roughly 70% of what we design because most Dhaka flat kitchens fall in the 60-90 sq ft range where L-shaped works best. That experience shapes every recommendation in this guide.
Key Takeaways
- Minor kitchen remodels return an average of 96% on investment (Remodeling Magazine, Cost vs. Value Report, 2024)
- U-shaped kitchens require a minimum footprint of roughly 107-120 sq ft; most Dhaka flats work better with L-shaped layouts in 50-80 sq ft kitchens (Dimensions.com)
- The NKBA recommends a work triangle where each leg measures 4-9ft (1.2-2.7m) and the total perimeter stays within 12-26ft (3.7-7.9m) for efficient kitchen workflow (National Kitchen and Bath Association)
Understanding the L-Shaped Modular Kitchen Layout
The L-shaped kitchen places cabinets and counters along two adjacent walls, forming an “L.” It’s the most common layout in Dhaka apartments, and for good reason. It fits compact rectangular or square kitchen rooms without wasting space. It works well for kitchens between 50 and 80 sq ft, which covers most 2 and 3 BHK flats in areas like Mohakhali, Bashundhara, and Mirpur.
The L-shape also handles open-plan kitchen designs gracefully. When your kitchen opens toward a dining or living area, one arm of the “L” can serve as a natural partition. This is ideal for homes where the family gathers while someone cooks. Our open kitchen design service frequently uses L-shaped layouts to create that connected, airy feel without sacrificing function.
One limitation is corner storage. The inside corner where the two arms meet can become a dead zone if not fitted with the right accessories, like a magic corner unit or a rotating carousel. A well-planned modular kitchen design addresses this from the outset, so no space is wasted. Corner carousels are functional and deliver excellent storage, but they do require more maintenance over time than open shelving, something to factor into your long-term decision.
L-shaped layout pros:
- Fits kitchens as small as 50 sq ft
- Works well in rectangular and square rooms
- Supports open-plan designs naturally
- Lower cost due to simpler cabinet runs
L-shaped layout cons:
- Corner cabinet space requires smart accessories to utilise
- Less total counter space than U-shaped
- Work triangle can stretch longer in larger rooms
Understanding the U-Shaped Modular Kitchen Layout
A U-shaped kitchen wraps cabinetry and counters along three walls. It creates a dedicated cooking zone with everything within arm’s reach. The National Kitchen and Bath Association (NKBA) recommends a work triangle where each leg measures between 4 and 9ft (1.2-2.7m), with the total perimeter between 12 and 26ft (3.7-7.9m). U-shaped kitchens naturally produce a tighter, more efficient triangle, which reduces movement during heavy cooking sessions.
This matters enormously in Bangladeshi kitchens. Cooking biryani, frying fish, or preparing a full curry-based meal involves multiple simultaneous tasks. A U-shape keeps the hob, sink, and refrigerator close together, so you’re not constantly crossing the kitchen.
The trade-off is space, and this is worth being direct about: a U-shaped kitchen requires a minimum floor area of approximately 107-120 sq ft, with at least 1,050mm of clearance between opposing counters for two people to work comfortably (absolute minimum: 900mm). Many Dhaka flats simply don’t offer this. If your kitchen is below 100 sq ft, a U-shape will feel cramped rather than efficient. For larger premium apartments in Gulshan, Banani, or Dhanmondi with 10ft x 12ft or larger kitchens, the U-shape is an excellent choice.
We completed a U-shaped modular kitchen in a Gulshan 2 apartment last year. The kitchen was 10ft x 12ft, right at the minimum for U-shaped to work comfortably. The client’s priority was maximum storage, and the U-layout delivered nearly 30% more cabinet space than an equivalent L-shaped design. You can see how a U-shaped layout performs in a real home at our completed project: modular kitchen design in Dhanmondi 10A.
U-shaped layout pros:
- Maximum storage along three walls
- Efficient work triangle for frequent, heavy cooking
- More total counter space for food preparation
- Better separation from living areas
U-shaped layout cons:
- Requires a minimum of 107-120 sq ft to work properly
- Not feasible in most compact Dhaka flats under 100 sq ft
- Can feel enclosed in smaller spaces
- Higher cost due to additional cabinet runs and corner hardware
Side-by-Side Comparison: L-Shaped vs U-Shaped
| Feature | L-Shaped | U-Shaped |
|---|---|---|
| Minimum kitchen size | ~50 sq ft | ~107-120 sq ft |
| Counter space | Moderate | High |
| Storage capacity | Good | Excellent |
| Work triangle efficiency | Moderate | High |
| Best for open-plan layouts | Yes | Less ideal |
| Suitable for Dhaka compact flats | Yes | Only in larger units |
| Cost (relative) | Lower | Higher |
| Number of people cooking simultaneously | 1 comfortably | 2 comfortably |
| Ventilation flexibility | Good | Requires planning |
Storage Capacity: Which Layout Gives You More?
Storage is a real concern in Bangladeshi kitchens. We store dry spices, oils, lentils, rice, and cookware, all of which need dedicated space. A U-shaped kitchen provides approximately 50% more linear cabinet space than an equivalently sized L-shaped layout, simply because it uses three walls instead of two.

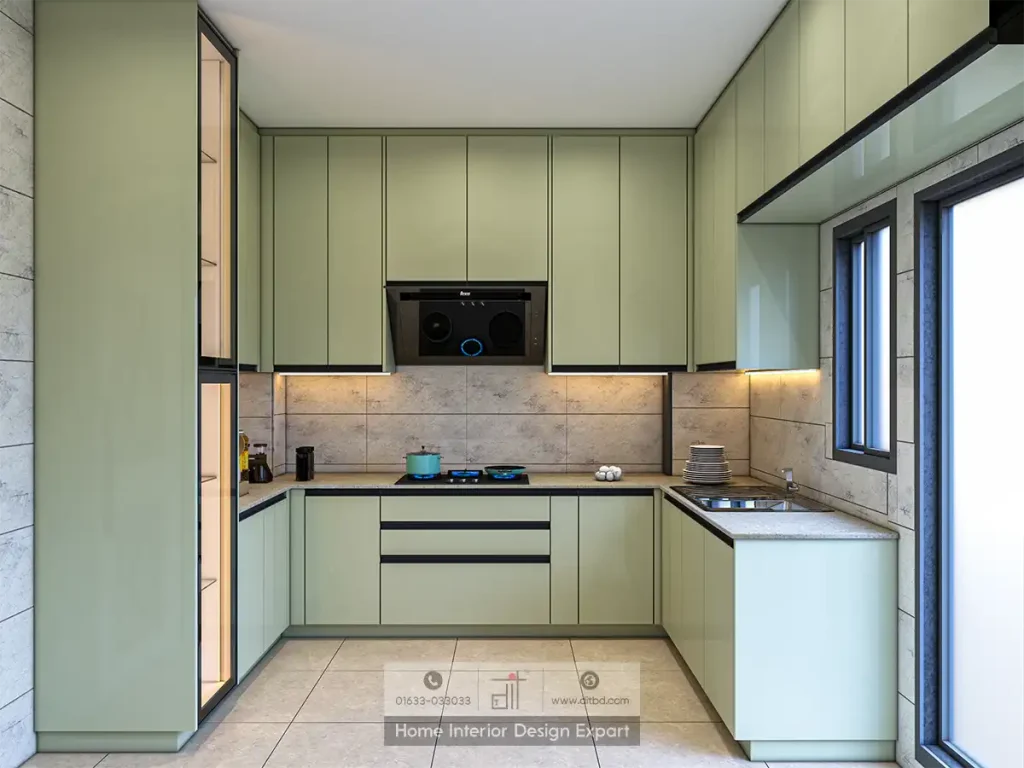

That said, an L-shaped kitchen with tall pantry towers and well-designed overhead units can rival a U-shape in total storage. Our modular kitchen design in Aftabnagar shows how a compact L-shaped layout can deliver exceptional storage through smart vertical design.
Our clients in compact Dhanmondi flats consistently prefer corner carousel units once they see the results. Research from corner cabinet specialists shows that carousel systems can provide up to 200% more effective storage than standard shelving in the same corner space. That wasted inside corner becomes your most valuable storage zone. One honest caveat: carousel mechanisms need occasional servicing after several years of heavy use, so factor that into your choice of hardware brand.
For the U-shaped layout, the additional wall means you gain a natural home for a built-in microwave, oven tower, or tall pantry unit without sacrificing counter space. This flexibility makes U-shaped kitchens particularly valuable for households that own multiple appliances.
Workflow and Ventilation: Critical Considerations for Bangladeshi Cooking
Bangladeshi cooking is demanding on a kitchen. Fish frying, mustard oil tempering, and pressure cooking all generate significant oil vapor, steam, and smoke. Ventilation placement is not optional. It’s a safety and comfort issue.
In an L-shaped kitchen, your chimney or exhaust fan typically sits above the hob on one arm of the layout. The open fourth side of the kitchen allows air to move freely. This makes ventilation simpler to design and often more effective in compact spaces.
In a U-shaped kitchen, the hob is usually positioned on the middle wall. The enclosed nature of the layout can trap steam if the chimney isn’t properly sized and positioned. A chimney with at least 900mm width and 1,000 m³/hr suction capacity is recommended for a U-shaped layout used for Bangladeshi cooking.
Good workflow also depends on aisle clearance. Standard counter height is 860mm, adjustable to 910-950mm for taller users, so your body mechanics are consistent regardless of layout. Aisle width is the bigger variable: 1,050mm between opposing counters is the comfortable minimum for two people; 900mm is the absolute floor. Our team at DIT Studio always factors ventilation and aisle clearance into the layout design from day one, not as an afterthought.
Cost Breakdown: What to Expect in Bangladesh
Kitchen costs vary by material, brand, and complexity. Below are indicative ranges for modular kitchens in Dhaka using quality materials like HPL or acrylic shutters on marine ply carcass. HPL shutters use a 0.8mm decorative surface bonded to a 16mm MDF or particle board substrate, delivering durability at a mid-range price point.
| Cost Component | L-Shaped | U-Shaped |
|---|---|---|
| Carcass (marine ply) | BDT 80,000-1,40,000 | BDT 1,20,000-2,00,000 |
| Shutter (HPL/acrylic) | BDT 60,000-1,20,000 | BDT 90,000-1,60,000 |
| Hardware (hinges, channels, handles) | BDT 20,000-40,000 | BDT 30,000-60,000 |
| Countertop (granite/quartz) | BDT 25,000-60,000 | BDT 40,000-90,000 |
| Corner accessories (if applicable) | BDT 8,000-20,000 | BDT 15,000-35,000 |
| Approximate Total | BDT 1,93,000-3,80,000 | BDT 2,95,000-5,45,000 |
These are estimates for standard-sized kitchens. Premium finishes, soft-close hardware, and custom accessories will add to the total. To understand what your specific kitchen might cost, contact our team for a consultation.
If you’re researching the broader decision between modular and traditional kitchen styles, our detailed guide on modular kitchen vs traditional kitchen covers the tradeoffs in depth.
Which Layout Should You Choose?
The honest answer depends on three factors: your kitchen’s square footage, how intensively you cook, and your budget.
Choose L-shaped if:
- Your kitchen is between 50 and 100 sq ft
- You cook for a family of up to four regularly
- You want an open-plan feel connecting kitchen to dining
- Budget is a priority
- Your flat is in a standard 2-3 BHK apartment in Dhaka
Choose U-shaped if:
- Your kitchen is 107 sq ft or larger
- You cook elaborate meals daily and need everything close at hand
- Two people frequently cook together
- You have a larger apartment in Gulshan, Banani, or Dhanmondi
- You want maximum storage and counter space
For inspiration, explore our completed U-shaped project at modern kitchen design in Banashree R.A. and our L-shaped work at modern kitchen design in Moghbazar.
If you’re navigating space constraints in a compact flat, our guide on space-saving interior design ideas for small flats in Dhaka has practical strategies that apply directly to kitchen planning.
Frequently Asked Questions
Can I convert my existing L-shaped kitchen to a U-shape?
Yes, but only if your kitchen has a free third wall with sufficient clearance. You’ll need at least 1,050mm of open floor space between the new cabinets and existing ones for comfortable movement (900mm absolute minimum). A professional assessment helps confirm feasibility before any commitment. Most conversions in Dhaka apartments are possible in kitchens 8ft x 12ft or larger. (Source: Dimensions.com, minimum U-shape clearance standards)
What is the minimum kitchen size for a U-shaped layout in a Dhaka flat?
A U-shaped kitchen needs approximately 107-120 sq ft of total floor area, with a minimum clearance of 1,050mm between opposing counters for two-person cooking (900mm is the absolute minimum). Kitchens smaller than this will feel too narrow for comfortable cooking and movement. (Source: Dimensions.com kitchen layout standards)
Is the L-shaped kitchen suitable for families who cook daily in Bangladesh?
Absolutely. The majority of clients we’ve served cook daily Bangladeshi meals in L-shaped kitchens. The key is smart design: the right chimney placement, adequate storage, and corner accessories. Our modular kitchen portfolio shows many examples of high-performance L-shaped kitchens built for demanding cooking habits.
Which layout is better for resale value in Dhaka?
A well-executed modular kitchen in either layout adds significant resale value. According to Remodeling Magazine’s 2024 Cost vs. Value Report, minor kitchen remodels return an average of 96% on investment. The layout matters less than the quality of materials and execution.
Does ventilation differ significantly between layouts?
Yes. L-shaped kitchens are generally easier to ventilate because one side of the kitchen remains open. U-shaped kitchens require a well-sized chimney, typically 900mm or wider with at least 1,000 m³/hr suction, positioned directly above the hob. Both layouts can be ventilated effectively with proper planning.
The Right Layout, Designed Right
Whether you choose L-shaped or U-shaped, the layout is only as good as the design behind it. Material choices, storage accessories, ventilation placement, countertop selection, and hardware quality all determine whether your kitchen genuinely works for your family.
As a trusted interior design company in Bangladesh, DIT Studio has designed and built modular kitchens across Dhaka for over a decade. We understand the unique demands of Bangladeshi cooking, the space constraints of Dhaka apartments, and the importance of every taka spent wisely. Our team will assess your specific kitchen dimensions, your cooking habits, and your budget, then craft a solution that fits all three.
Ready to start? Explore our modular kitchen design service or get in touch with our team for a free consultation. See why our 500+ clients choose DIT Studio for their most important spaces.
Written by the DIT Studio design team — Bangladesh’s specialist home interior firm since 2015. We’ve designed modular kitchens across hundreds of Dhaka apartments, from compact 50 sq ft galley kitchens to spacious 120 sq ft open-plan configurations.
